High Precision Digital Insulation Resistance Tester 1000 Volt And 10GOhm Detection

High precision Digital Insulation Resistance Tester , 1000Volt And 10GOhm Detection

English User Manual:https://drive.google.com/open?id=1k4JG7B-dJA5nLlMsJsyu8wilyCodOUTO

Feature of Digital Insulation Resistance Tester

• Design according to the IEC61010-1CATIII 1000V CAIV 600V
• Auto discharge for capacitive load
• Timer Function for insulation test
• Lock function for insulation test
• Digital and analog display
• Auto Calculate PI and DAR
• Store /Load Function
• Low Battery Indication
• DCV and ACV Test
• Compare function
• Continuity test
• Auto power Off

Description of Digital Insulation Resistance Tester

• Power-Up Options - ​Holding a button down while turning the Meter on activates a power-up option. Power-up options allow you to useadditional features and functions of the Meter. To select a power-up option, hold down the appropriate button indicated while turning the Meter from OFF to any switch position. Power-up options are cancelled when the Meter is turned Off
• Buttons Function - SELECT Disables automatic power-off function Display shows PoFF until the button is released.
• Automatic Power Off - The Meter have automatic power off function(Sleep mode) to conserve battery power .if there is no function change or button press for 10 minutes. The Meter comes out of Sleep mode when a key is pressed or when the rotary switched is changed.To disable the Sleep mode, hold down SELECT button while turning the Meter on. Sleep mode is always disabled in the insulation test mode, or if the auto power off feature has been disabled by pressing SELECT button when the Meter is turned on.
• Hold Funcion - Press Hold button to freeze the displayed value. Press again to release the display.
• Relative Measurement - Show the difference between actual value and the relative base. Press REL Button to enter relative measurement and the meter will record the initial value when pressing the key. Displayed value = Actual value -Initial value Press REL Button again to exit relative measurement.Press SELECT button to view Initial value,when the Initial value is invalid,display.

digital megohmmeter insulation resistance tester

insulation test meter

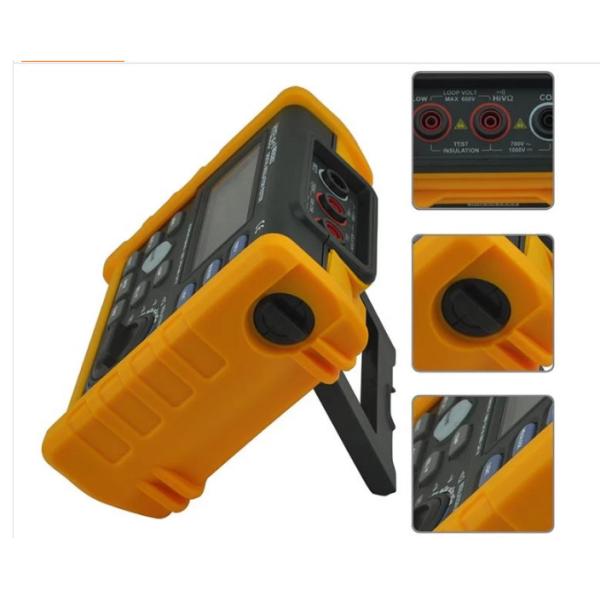

High Precision Digital Insulation Resistance Tester 1000 Volt And 10GOhm Detection Images
